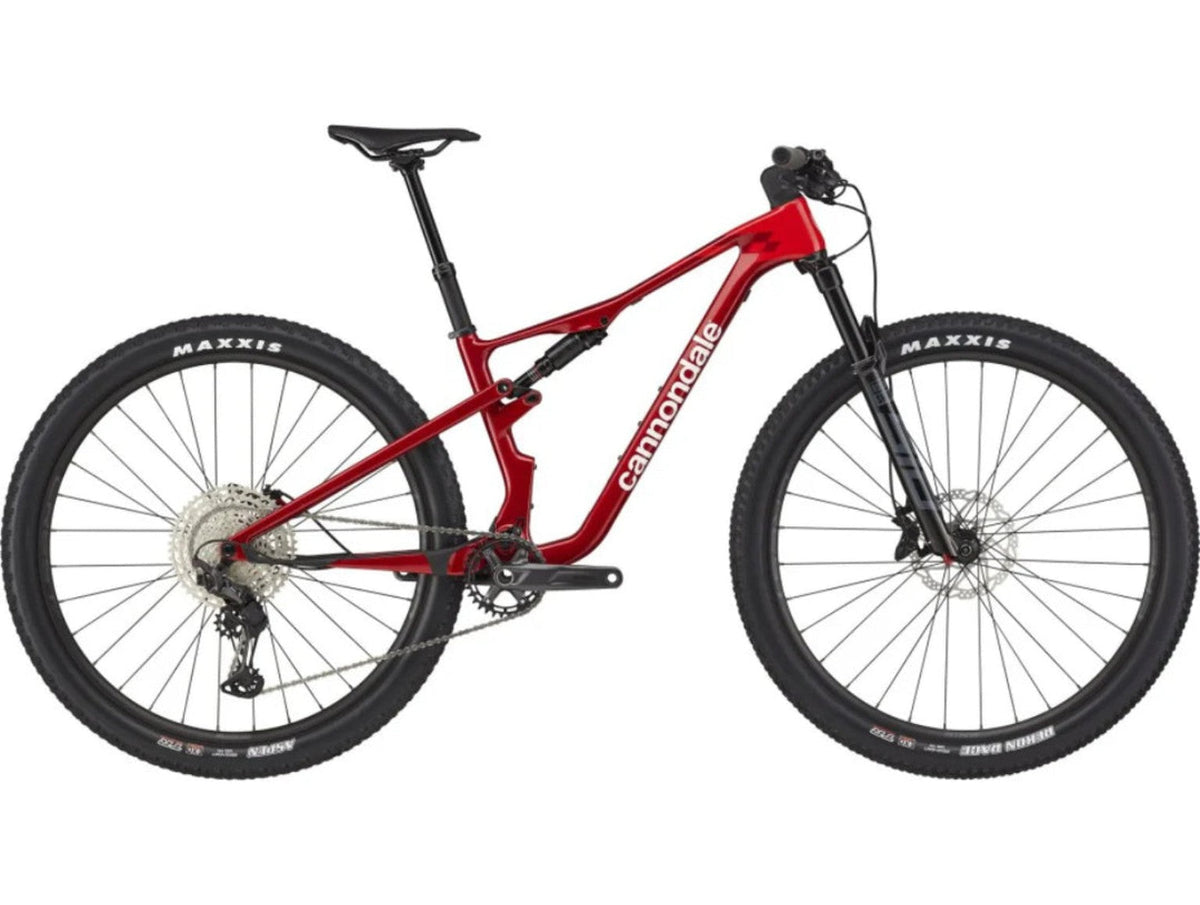

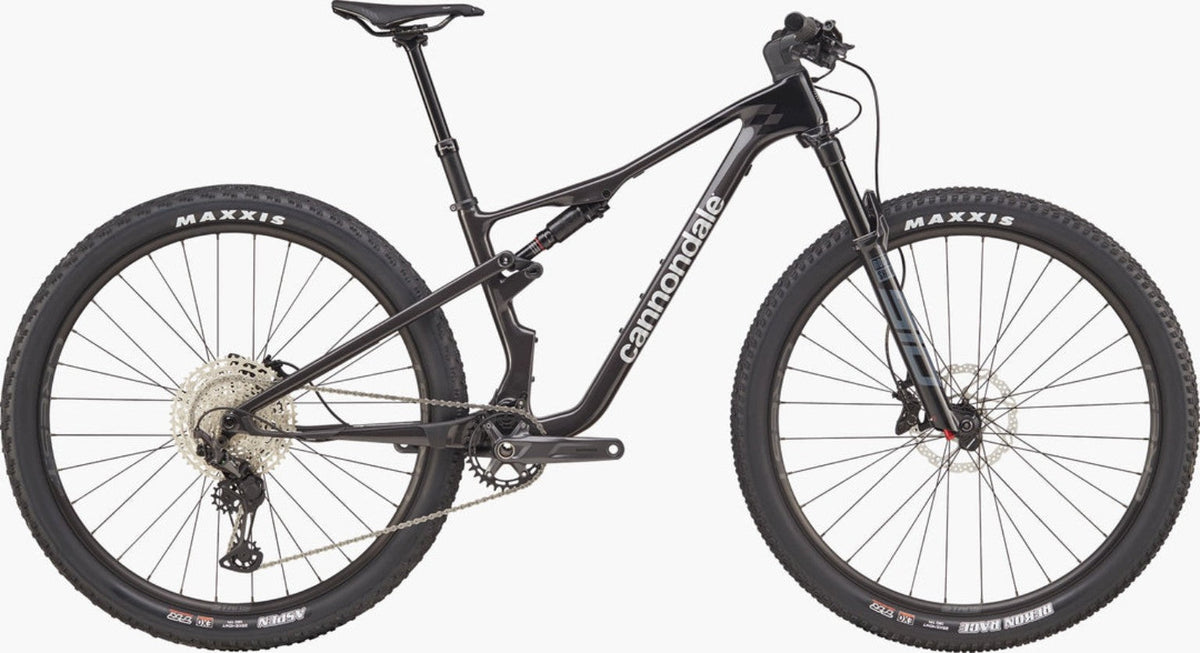

Cannondale Scalpel 4 XC Mountain Bike

Cannondale Scalpel 4 XC Mountain Bike

Designed for fast cross-country racing and technical trails, the Cannondale Scalpel 4 combines a lightweight carbon frame with 120mm of front and rear suspension travel. Its FlexPivot suspension and Proportional Response geometry help deliver efficient climbing, confident cornering and control over rough terrain.

Highlights

• Lightweight carbon FlexPivot frame with 120mm rear travel
• RockShox SID 120mm fork and SIDLuxe Select+ rear shock, with TwistLoc remote dual lockout
• Shimano Deore M6100 12-speed drivetrain
• Shimano MT501 hydraulic disc brakes
• Stan's NoTubes Crest S2 tubeless-ready rims
• Maxxis Rekon Race and Aspen 29 x 2.4-inch tyres
• Cannondale DownLow dropper seatpost

Full specification

• Model code: C24504U
• Frame: Scalpel lightweight carbon, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot chainstay, full internal cable routing, 73mm BSA bottom bracket, 148 x 12mm rear thru-axle, UDH
• Fork: RockShox SID, 120mm, DebonAir, 15 x 110mm thru-axle, 44mm offset, TwistLoc remote dual lockout
• Rear shock: RockShox SIDLuxe Select+, two-position adjustment, rebound adjustment, 190 x 45mm, TwistLoc remote dual lockout
• Headset: Acros ICR
• Rear derailleur: Shimano Deore M6100
• Shifters: Shimano Deore M6100, 12-speed
• Crankset: Shimano M5121, 32T
• Cassette: Shimano Deore, 10–51T, 12-speed
• Chain: Shimano Deore, 12-speed
• Bottom bracket: Shimano BSA 73mm
• Brakes: Shimano MT501 hydraulic discs, 180mm front / 160mm rear RT10 rotors
• Rims: Stan's NoTubes Crest S2, 32-hole, tubeless-ready
• Spokes: DT Swiss Champion
• Hubs: Shimano TC-500 front, 15 x 110mm; Shimano MT410B rear, 12 x 148mm
• Front tyre: Maxxis Rekon Race WT, 29 x 2.4-inch, EXO Protection, tubeless-ready
• Rear tyre: Maxxis Aspen WT, 29 x 2.4-inch, EXO Protection, tubeless-ready
• Handlebar: Cannondale 2 Flat butted 2014 alloy, 760mm, 3° rise, 8° sweep
• Stem: Cannondale C1 Conceal alloy, -6°
• Grips: RockShox Smooth Silicone
• Saddle: Prologo Dimension NDR, STN rails
• Seatpost: Cannondale DownLow internally routed dropper, 125mm travel (S), 150mm (M–XL)

Manufacturer specifications may change subject to component availability. Contact Total Endurance Cycles to confirm the exact build and size availability.
